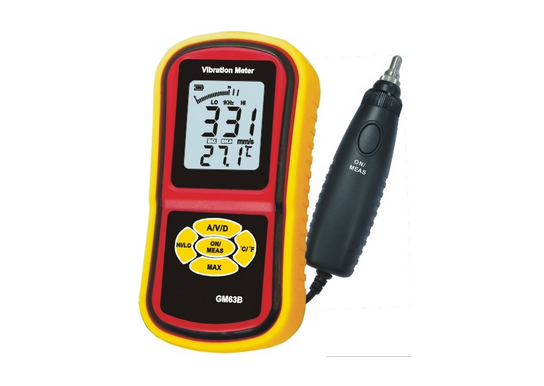

Vibration Meter GM63B

Tel:0577-61775611
Fax:0577-61715611
Thumbnail 1

Product Details

*Measuring range

Acceleration0.1~199.9m/s

Velocity0.1~1999.9m/s

Displacement0.001~1.999 mm (PP)

*Accuracy: ±5%

*Measuring frequency

--Acceleration: 10Hz~1KHz (LO)1KHz~15KHz (HI)

--Velocity: 10Hz~1KHz (LO)

--Displacement: 10Hz~1KHz (LO)

*LCD display: 3 1/2 digits display

*Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)

*Operation temperature: 0~40

*Equipped two probes (S and L) to adapt the different measurement requirement

*Provides a magnetic probe to fit the condition uneasy hold on by hand

*Maximum value hold function

*Ambient temperature reading

*C/F selection

*Low battery indication

*Auto power off

*LCD backlight display

Warranty: 12months

*Packing method: Gift box + PP box

*Power supply: 1*9V battery

*Weight: 200g

*Dimension: 70*145*28MM
