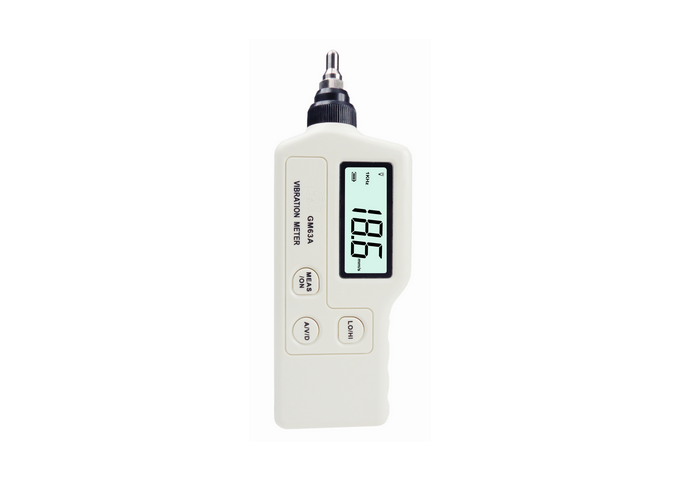

Vibration Meter GM63A

*Measuring range：

Acceleration：0.1~199.9m/s

Velocity：0.1~1999.9m/s

Displacement：0.001~1.999 mm (P﹣P)

*Accuracy: ±5%H±2digits

*Measuring frequency：

--Acceleration: 10Hz~1KHz (LO)；1KHz~15KHz (HI)

--Velocity: 10Hz~1KHz (LO)

--Displacement: 10Hz~1KHz (LO)

*LCD display: 3 1/2 digits display

*Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)

*Data output: AC output 2 V peak (display full scale)

*Load impedance: 10K or more earphones can be connected

*Operation temperature: 0~40℃

*Equipped two probes (S and L) to adapt the different measurement requirement

*Low battery indication

*Auto power off

*LCD backlight display

Warranty: 12months

*Packing method: Gift box + PP box

*Power supply: 1*9V battery

*Weight: 134.5g

*Dimension: 175*67*33MM
