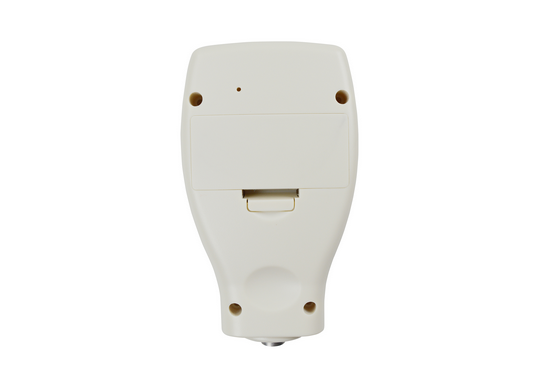

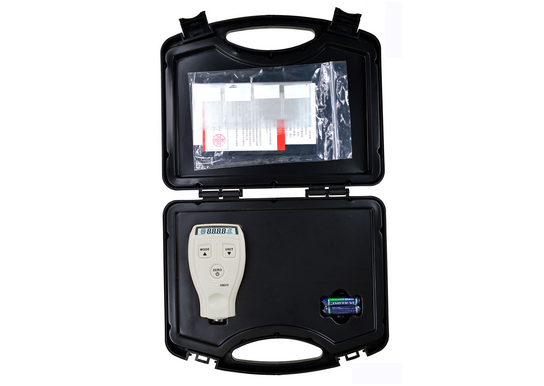

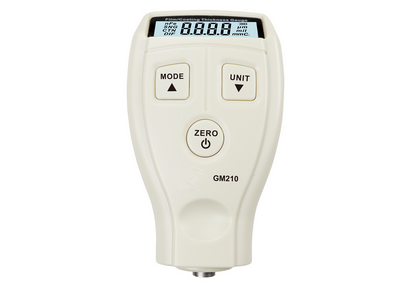

Film/Coating Thickness Gauge 210
Tel：0577-61775611
Fax：0577-61715611
E-mail：chenf@chenf.cn
Product Details
Measurement ranges:0~1800μm/0~70.9mil
Resolution:0.1μm/1μm/1mil
Measurment error:±(3%H+1μm)
Min.diameter of substrate:Φ12mm
Operating humidity range:10~95%RH
Overall dimensions:61.98*30.57*104.99mm
Weight:63.98g
Standard Quantity Per Carton:20PCS
Standard Carton Size:65.9*44*28.9cm
Resolution:0.1μm/1μm/1mil
Measurment error:±(3%H+1μm)
Min.diameter of substrate:Φ12mm
Min.thichness of substrate:0.5mm
Min.curvature radius of convex substrate:2mm
Min.curvature radius of concave substrate:11mm
Power supply:2*1.5V AAA batteries
Operating temperature range 0~40℃Operating humidity range:10~95%RH
Overall dimensions:61.98*30.57*104.99mm
Weight:63.98g
Standard Quantity Per Carton:20PCS
Standard Carton Size:65.9*44*28.9cm
