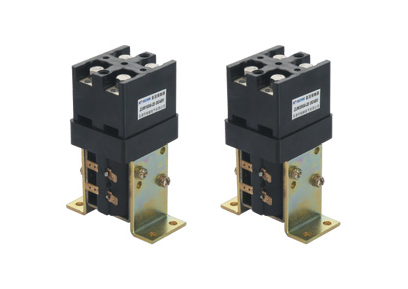

ZJW100-200-20 DC Contactor
Product Details
ZJW100/200-20 type the 2 normally open DC contactors, the main contacts are suitable for AC 380V, 220V, 110V and DC 6V-110V and soon. It could use for the pump motors and other electronic vehicles, also apply to communication base station power supply, EPS power supply, uninterruptible power supply and other industrial power supply. It solved the unwork problem which cased by the AC contactors lack of voltage, the characteristic is start and off synchronization, is an energy-saving products. Stable performance, reliable quality.
Brief Technical Data
| Parameters | Coil voltage of contact circuit (V) |
| Parameters | 6 -220V |
| Coil power | 100A:11-13W 200A:16-18W |
|
Main rated load current of contact circuit(A) |
100A、200A |
| Rated voltage of contact circuit (V) | 6-80V DC |
| Dielectric(volt)strength | 50Hz 1000V AC 1min |
| Current volt drop of main contact at 100A | Not above 80mV |
| Operating time |
Pickup(contact makes): ≯30ms， release (contact breaks): ≯30ms |
| Action characteristic |
Pickup(contact makes):≯66%Us, Release(contact breaks):≯30%Us,≮5%Us |
| Mechanical life | 100 thousand times |
| Electric life | 20 thousand times |
tips:Specifications subject to change as the customers' request.
Coil voltage in above 48V with permanent magnet blowouts
Configurational Mounting Diagram
