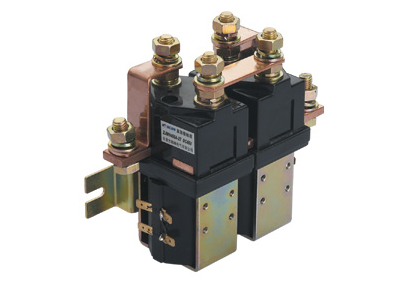

ZJW200-H-T DC Contactor
Tel：0577-61775611
Fax：0577-61715611
E-mail：chenf@chenf.cn
Product Details
| Parameters | Coil voltage of contact circuit (V) |
| Parameters | 6 -220V |
| Coil power | 16-20W |
|
Main rated load current of contact circuit(A) |
200A |
| Rated voltage of contact circuit (V) | 6-80V DC |
| Dielectric(volt)strength | 50Hz 1000V AC 1min |
| Current volt drop of main contact at 100A | Not above 80mV |
| Operating time |
Pickup(contact makes): ≯30ms， release (contact breaks): ≯30ms |
| Action characteristic |
Pickup(contact makes):≯66%Us, Release(contact breaks):≯30%Us,≮5%Us |
| Mechanical life | 100 thousand times |
| Electric life | 20 thousand times |
tips:Specifications subject to change as the customers' request.
Configurational Mounting Diagram
