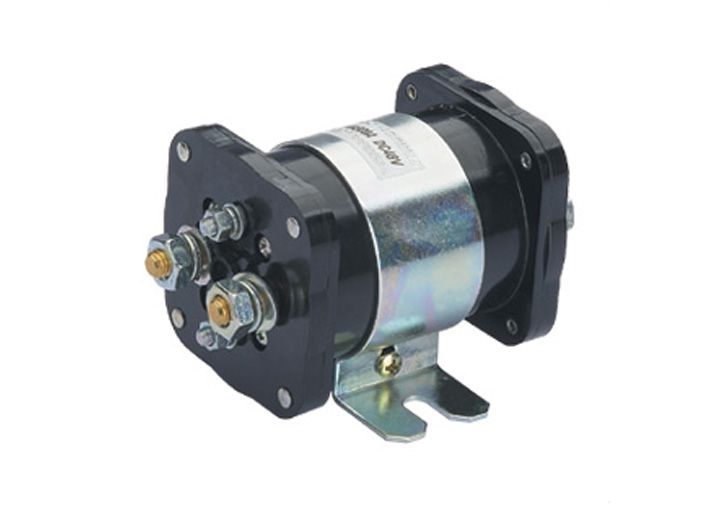

NR200-500 H DC contactor
Tel：0577-61775611
Fax：0577-61715611
E-mail：chenf@chenf.cn
Product Details
NR200/500-H series dc contactor are suitable for the battery or the rectification power and supplies power, using for handling drawing, the pump motor and other electronic vehicles.
| Parameters | Coil voltage of contact circuit (V) | ||
| 12 | 24 | 48 | |
| Max. coil current(A) | 0.38 | 0.31 | 0.16 |
| Main rated load current of contact circuit(A) | 200A、500A | ||
| Rated voltage of contact circuit (V) | 6-80V DC | ||
| Dielectric(volt)strength | 50Hz 1000V AC 1min | ||
| Current volt drop of main contact at 100A | Not above 80mV | ||
| Operating time |
Pickup(contact makes): ≯30ms， release (contact breaks): ≯30ms |
||
| Action characteristic |
Pickup(contact makes):≯66%Us, Release(contact breaks):≯30%Us,≮5%Us |
||
| Mechanical life | 100 thousand times | ||
| Electric life | 20 thousand times | ||
tips:Specifications subject to change as the customers' request.
Configurational Mounting Diagram
